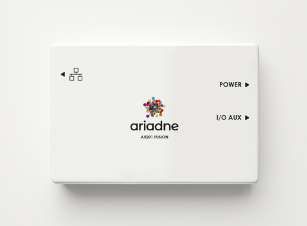

Ariadne Fusion Pro
A Fusion of Connectivity and Intelligence with Wi-Fi 5, LTE & ToF
Ariadne Fusion (AR PRO) is a powerful, next-generation analytics gateway combining Wi-Fi 5 connectivity, GSM/LTE backhaul, and advanced Time-of-Flight sensing in one compact device. Purposebuilt for real-time visitor analytics, it ensures seamless data capture in environments where both wireless and mobile network connectivity are required. Its rugged design, multiple wireless interfaces, and PoE-powered architecture make it ideal for deployments across transport hubs, retail, and smart city infrastructures.
Buy Now
Buy NowAbout this item
- Dual-Band Wi-Fi 5 with Multi-Interface Design
- LTE-Enabled GSM Modem
- PoE-Powered Simplicity
- Advanced ToF Sensing (VL53L8CX)
Highlights
Dual-Band Wi-Fi 5 with Multi-Interface Design
Equipped with 4 wireless interfaces (2 × selectable 2.4/5 GHz, 2 × dedicated 5 GHz), delivering high-performance connectivity and enhanced analytics capabilities.
LTE-Enabled GSM Modem
Built-in LTE Cat4 GSM modem ensures reliable connectivity in locations without wired backhaul, making Fusion suitable for remote or mobile environments.
PoE-Powered Simplicity
Powered via IEEE 802.3af PoE, enabling streamlined installation through a single Ethernet connection for both data and power.
Advanced ToF Sensing (VL53L8CX)
Integrated multizone Time-of-Flight sensor provides precise peoplecounting and behavior analytics, with up to 400 cm range, 8×8 zone configuration, multitarget detection, and 60 Hz frame rate.
Product information
Specification
Details
- Size
- 120mm X 70mm X 20mm
- Weight
- 160g
- Interface
- 1 × Ethernet port with PoE
- Menory / Storage
- 128 MB DDR2 / 32 MB NOR Flash
- CPU
- MediaTek MT7621A SoC @ 880 MHz, Dual Core
- Wireless Protocols
- IEEE 802.11 a/b/g/n/ac
- Wireless Interfaces
- 2 × selectable 2.4 GHz or 5 GHz; 2 × 5 GHz
- Wi-Fi Speed
- 400 Mbps (2.4 GHz), 867 Mbps (5 GHz)
- Antennas
- 2T2R, Internal for WiFi + External GSM
- Modem
- LTE Cat4 GSM modem
- Ethernet Port
- 1 × RJ45 10/100/1000 Mbps with PoE
- LEDs
- Power / Streaming Status, Internet Status
- Time of Flight Sensor
- VL53L8CX – Multizone ranging (4×4 or 8×8 configuration); up to 400 cm range; multitarget detection; 60 Hz frame rate; wide FoV
- Power Input
- Power over Ethernet (PoE)
- Power Support
- IEEE 802.3af
- Power Consumption
- 7–10 W (depending on network and modem activity)
- Battery (optional)
- 900mAH
- Working Temperature
- -40 °C to +50 °C
- Storage Temperature
- -40 °C to +50 °C
- Housing
- UV-stabilized plastic; AP mounting bracket (suitable for ceiling/ wall mount)
- Safety Standards
- CE: EN IEC 62368-1:2020 + A11:2020; EN IEC 62311:2020; RCM: AS/NZS 62368.1:2022; CB: IEC 62368-1:2018
