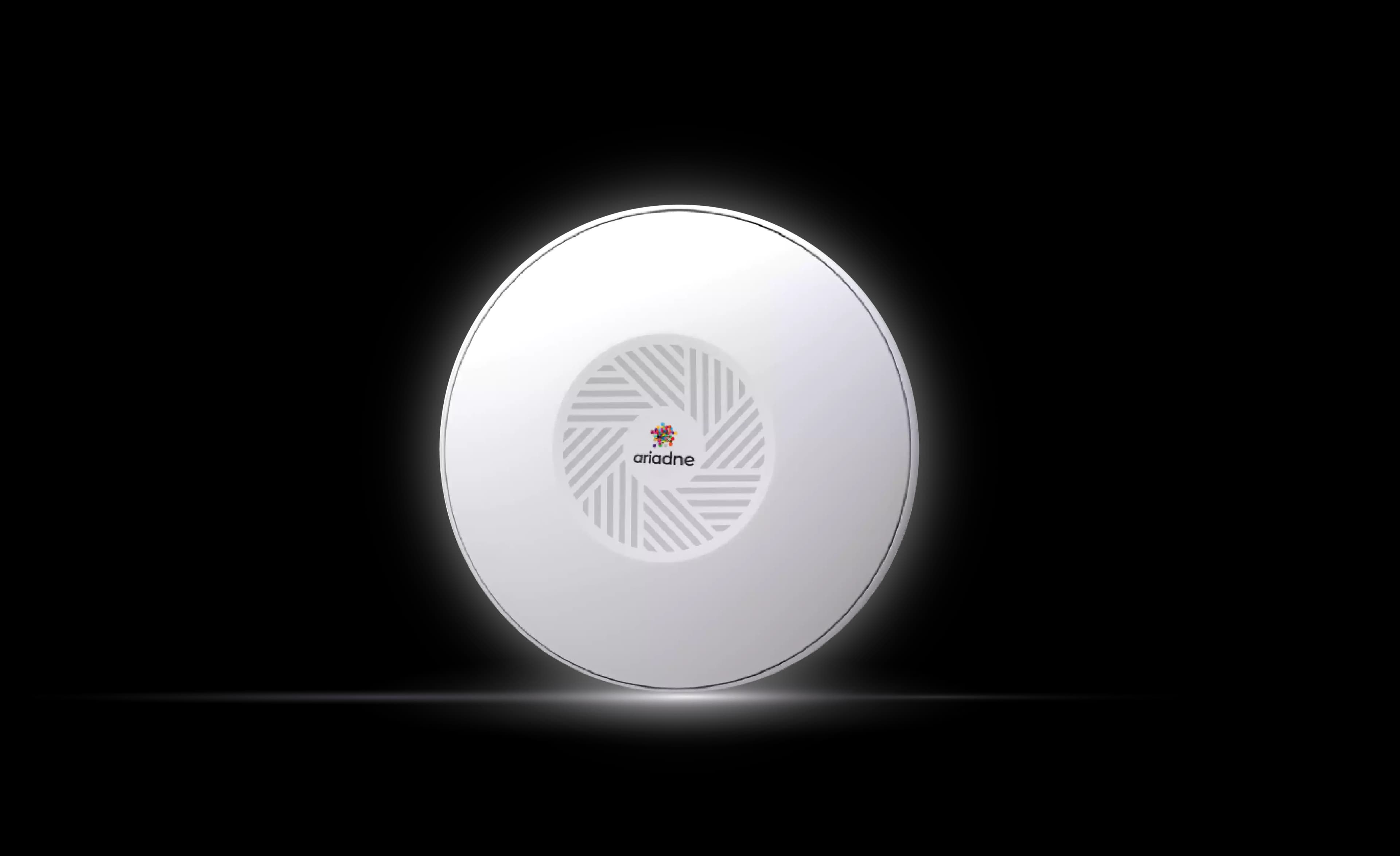

Ariadne Pulse
Wi-Fi 5 Access Point for Real-Time Analytics

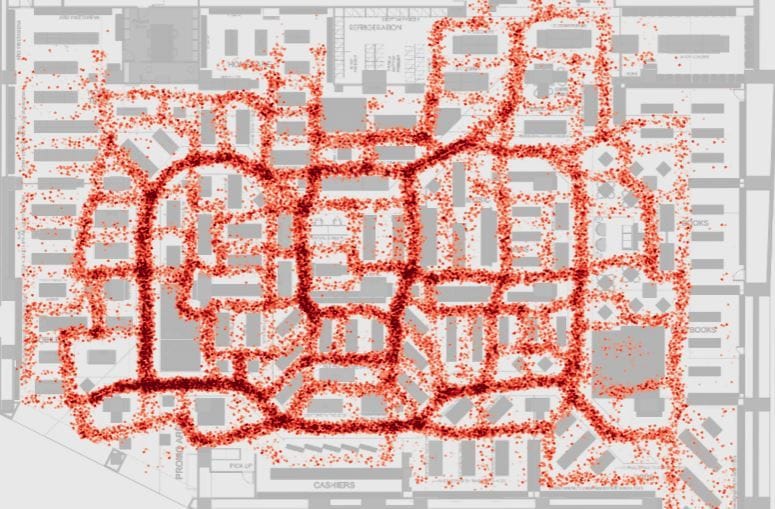

Ariadne Pulse is a high-performance, dual-band Wi-Fi 5 access point engineered to deliver precise visitor analytics in both indoor and outdoor environments. Designed to be the backbone of a robust analytics network, it captures anonymous footfall and behavioral data while ensuring privacy and compliance with GDPR.
Dual-Band Wi-Fi 5
Supports both 2.4 GHz and 5 GHz bands for enhanced connectivity and faster speeds.
PoE-Powered
Simplified installation with IEEE 802.3af PoE-in that allows powering via a single RJ45 port.
• Mesh-Ready
Optimized for extended coverage across multi-zone environments, ensuring reliable, real-time visitor analytics without interruption.
Secure & GDPR-Compliant
Engineered with enterprise-level security measures and designed for compliance with GDPR, safeguarding user privacy.
Ariadne Pulse
Ariadne Pulse is a high-performance, dual-band Wi-Fi 5 access point engineered to deliver precise visitor analytics in both indoor and outdoor environments. Designed to be the backbone of a robust analytics network, it captures anonymous footfall and behavioral data while ensuring privacy and compliance with GDPR.
About this item
- Dual-Band Wi-Fi 5
- PoE-Powered
- • Mesh-Ready
- Secure & GDPR-Compliant
Highlights
Instructions
Product information
- Interface
- 1 x RJ45 10/100/1000 Mbps
- Memory / Storage
- 256 MB, DDR3 / 16 MB, SPI NOR Flash
- CPU
- MediaTek, Dual-Core, 880 MHz, MIPS 1004Kc
- Antennas
- 2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi
- Protocol
- IEEE 802.11b/g/n/ac Wave 2 (Wi-Fi 5)
- Wi-Fi Speed
- 2.4 GHz: Up to 300 Mbps; 5 GHz: Up to 867 Mbps
- TX Power
- 2.4 GHz: Max 20 dBm (11b); 5 GHz: Max 20 dBm (11a)
- Ethernet Port
- 1 x RJ45 10/100/1000 Mbps
- LEDs
- 1 x Power LED (can be turned off from web-UI)
- Power Input
- 44.0 – 57.0 V (PoE)
- PoE Support
- 802.3af PoE Class 1
- Power Consumption
- Idle: < 4 W / Max: < 5.5 W
- Working Temperature
- -40 °C to 50 °C
- Storage Temperature
- -40 °C to 70 °C
- Housing
- UV stabilized plastic; AP Mounting Bracket (suitable for ceiling mount)
- Dimension / Weight
- Ø 158 mm x 30 mm / 190 g
- SAFETY Standards
- CE:EN IEC 62368-1:2020 + A11:2020; EN IEC 62311:2020; RCM: AS/NZS 62368.1:2022; CB:IEC 62368-1:2018
